1.1.1 Batteries¶
Dual battery system with AGM starter battery and LiFePO4 deep cycle auxiliary battery.
START Battery - Odyssey PC1500¶

Type: AGM Deep Cycle Battery
Model: Odyssey ODX-AGM34 (PC1500)
Manufacturer: Odyssey Battery
Product Page: Odyssey PC1500
Specifications¶
Purpose¶
Critical systems requiring high cranking amps and reliable starting:
- Engine starting (Cummins R2.8)
- PMU power (all engine bay loads)
- SafetyHub circuits
- HVAC, radiator fan

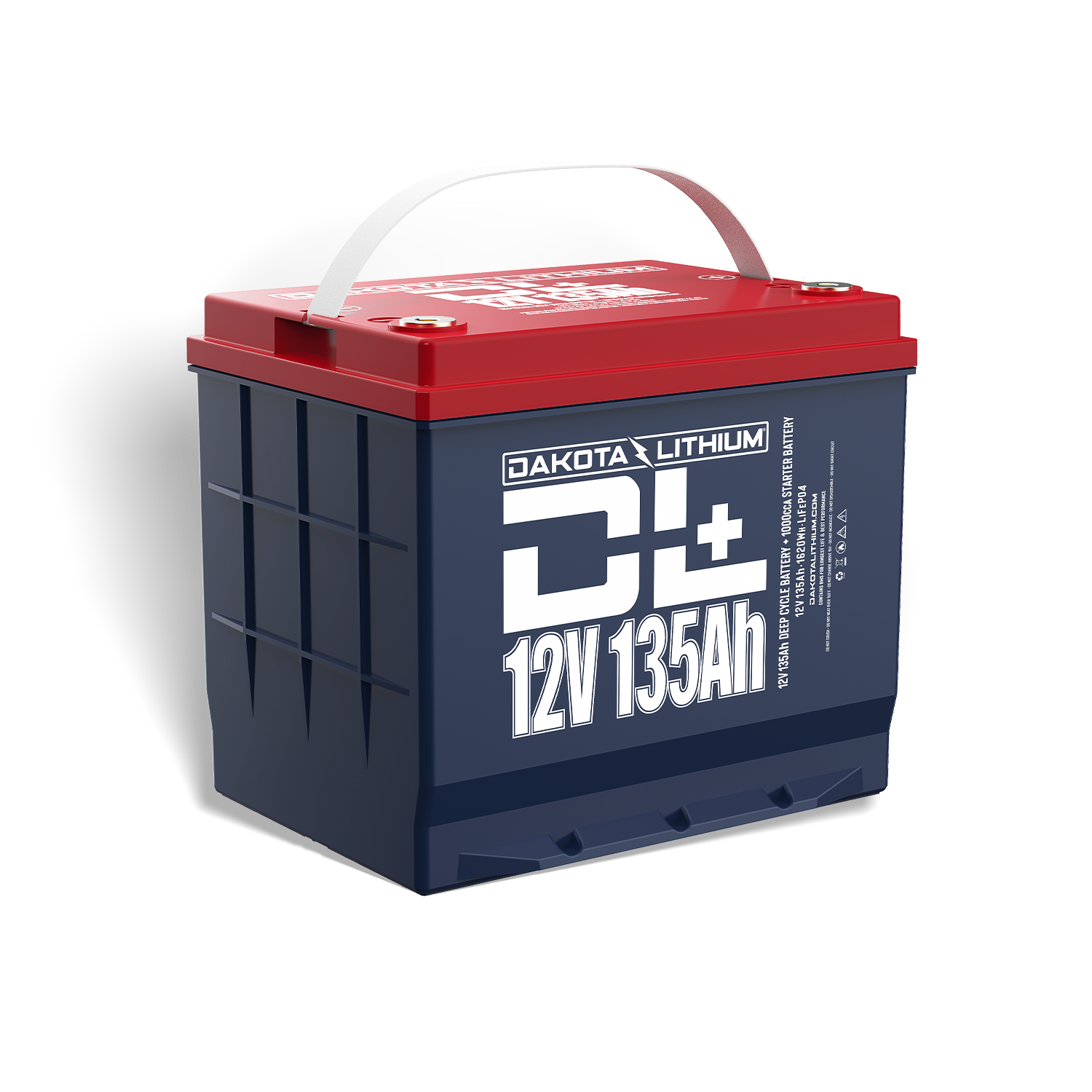

AUX Battery - Dakota Lithium 135Ah¶

Type: LiFePO4 Deep Cycle with Heated BMS
Model: DL+ 12V 135Ah Dual Purpose
Manufacturer: Dakota Lithium
Product Page: Dakota Lithium 135Ah
Specifications¶
- Capacity: 135 Ah (108 Ah usable at 80% DOD)
- Voltage: 12.8V nominal
- CCA: 1,000A equivalent
- Max Continuous Discharge: 135A
- Peak Discharge: 1,000A (2 sec)
- Dimensions: 9.5" L × 6.9" W × 8.2" H (Group 24)
- Weight: 27.2 lbs
- Cycle Life: 5,000 cycles @ 80% DOD
- Operating Temp: -4°F to 158°F (-20°C to 70°C)
- Heated BMS: Internal even-heat technology enables charging down to -4°F
Purpose¶
Accessories and high-draw auxiliary loads:
- SwitchPros lighting (up to 68A full offroad lighting)
- BODY PDU (audio, USB, heated seats)
- Winch (409A peak)
- ARB compressor (90A)
Why LiFePO4¶
| Factor | Odyssey AGM | Dakota LiFePO4 |
|---|---|---|
| Capacity | 68Ah | 135Ah |
| Usable capacity | 34Ah (50% DOD) | 108Ah (80% DOD) |
| Weight | 49.5 lbs | 27.2 lbs |
| Cycle life | 400 | 5,000 |
| Cold charging | Any temp | Heated BMS |
3× usable capacity enables 6+ hours of full night offroad lighting vs ~2 hours with AGM.
System Configuration¶
- START battery (Driver Rear Wheel Well): Odyssey PC1500 - critical systems
- AUX battery (Passenger Rear Wheel Well): Dakota Lithium 135Ah - accessories
- Isolation: BCDC Alpha 50 (independent operation when engine off)
- Jump Start: BCDC jump start assist can parallel batteries if START fails
- Redundancy: Vehicle operates on START battery alone if AUX system fails
Mounting¶
- START battery: Driver rear wheel well - enclosed compartment with access panel
- AUX battery: Passenger rear wheel well - Barnes 4WD battery box (Group 24 compatible)
Outstanding Items¶
High (3)
- MRBF terminal fuse block and fuse part numbers (both battery posts) (#331) — The inline Mechanical Products Series 17 breakers at the START and AUX battery posts are being replaced by Blue Sea MRBF terminal fuses mounted on the posts (fewer lugs and joints). Confirm at order:
- START+ auxiliary distribution busbar + breakers for relocated fan / iBooster / TCU (#135) — Relocating the radiator fan, iBooster, and TCU from the PMU to START-battery-direct adds three breaker-protected feeds. All three loads are forward (engine bay / transmission) while the START battery is rear, so the chosen architecture mirrors the AUX forward-feed pattern: a single master-protected feed forward to an engine-bay busbar rather than three long runs or ~9 stacked lugs on the battery post.
- Dakota Digital Panel Mounting (#39) — HDPE sheet dimensions and location for the Dakota Digital panel.
📋 Medium (10)
- SwitchPros Output Wire Lengths (#107) — Wire lengths for the 12 SwitchPros SP-1200 output circuits (front/cabin/rear/roof fan-out from the firewall) are currently 'Various / TBD'. Determine once final load mounting locations are fixed.
- Radio Ground Routing (#82) — Path for 14 AWG ground wires from GMRS / Intercom (dashboard) to START battery negative (driver rear wheel well) - direct grounds required for RF noise isolation
- BODY PDU Metri-Pack Pinout (#69) — J301-J306 connector pinout (military TM or reverse engineering)
- Alternator Voltage Regulator Set Point (#68) — Verify 14.2-14.4V for AGM batteries
- Alternator Output Terminal Size (#67) — Terminal size for 1/0 AWG lug selection
- RF Power Grommet Location (#66) — Grommet 6 location near battery for radio power
- Roof/Roll Bar Routing (#64) — Light bars, dome lights
- Cab to Cargo Routing (#63) — Rear lights, compressor, lockers
- Dash to Console Routing (#62) — Switch panels, USB, radio
- Firewall Grommet Circuits (#61) — Complete wire bundle lists
📝 Low (1)
- AUX battery− chassis-bond (rear frame rail) peak return current (#124) — Peak current through the AUX battery− → rear frame rail 2/0 chassis bond needs a proper derivation.
🔍 Verify (2)
- ARB compressor feed length: reconcile 8/10/12 ft and measure (#154) — Three different lengths are documented for the SafetyHub → ARB twin compressor feed: ~8 ft (wire-distance reference), ~10 ft (harness inventory H6), ~12 ft (SafetyHub circuit table). The SafetyHub is in the passenger rear wheel well and the compressor under the seat, so the spread doesn't change the 6 AWG sizing materially, but the figure should be measured and unified across the three files.
- Measured cable distances: START battery → relocated radiator fan / iBooster / TCU (#136) — The radiator fan, iBooster main, and TCU now feed from the START+ forward distribution busbar (engine bay) via a single master feed from the START battery (driver rear wheel well). Provisional gauges:
Build Tasks¶
- Backorder Barnes 4WD battery box (Group 24 compatible, ~$67)
- Powdercoat or paint battery box before installation
Installation Tasks: See Section 1 Installation Checklist
