4.4 Chase Light

Multi-function rear safety light for convoy visibility, plus integrated brake, turn, and work lighting.

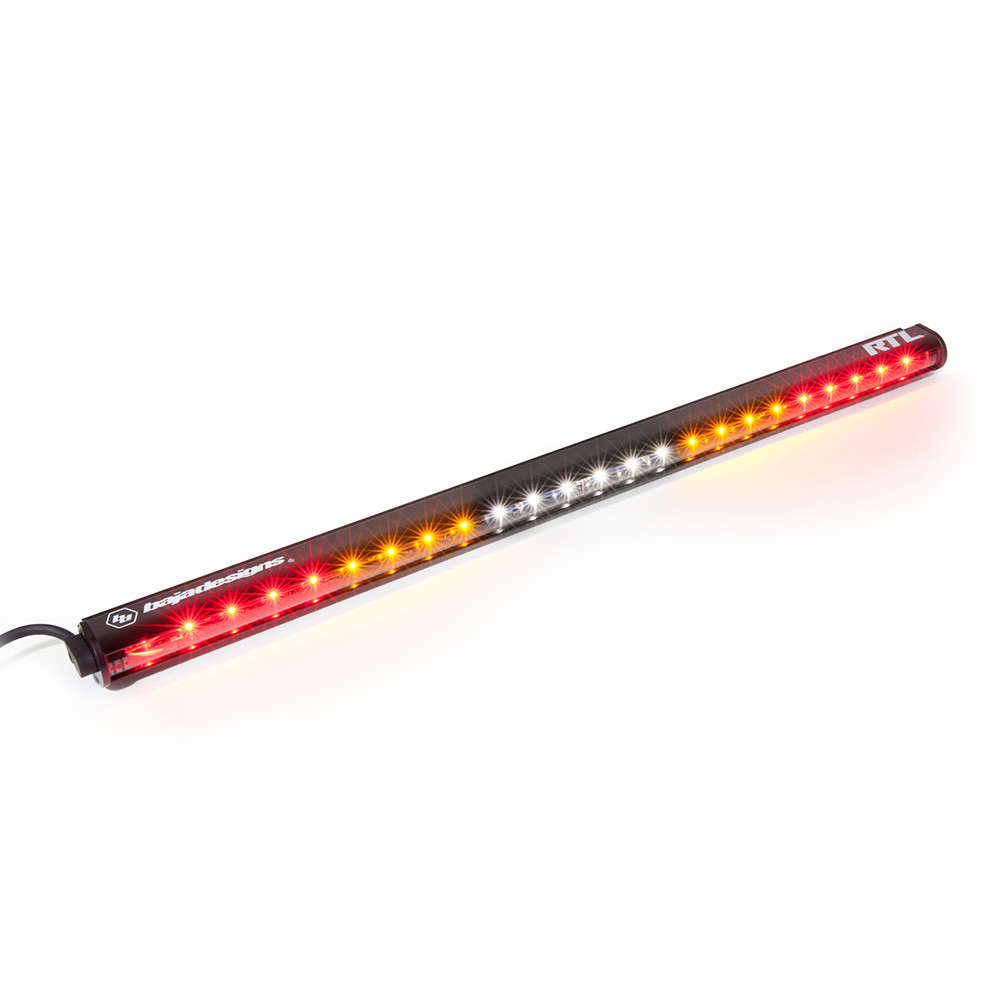

Baja Designs RTL-S 30"

Type: LED Chase Light Bar

Model: RTL-S 30"

Part Number: 103004

Manufacturer: Baja Designs

Product Page: RTL-S 30"

Quantity: 1

Mounting: Baja Designs tube mounts on rear roll cage

Power Source: Multiple (see Functions table)

Harness: RTL-S wiring harness (Part #: 640134)

Wiring

4-Wire Connector (Main Functions)

Wire Function Draw Source
Black Ground - Chassis ground
Red Running 0.8A Running light splice
Yellow Brake 1.45A Brake light splice
Blue Work (White) 1.3A Running light splice (shared)

2-Wire Connector (Amber Sections)

Wire Function Draw Source
Yellow Right Amber 0.36A Turn signal splice OR SwitchPros OUTPUT-7 (via diode)
Blue Left Amber 0.36A Turn signal splice OR SwitchPros OUTPUT-7 (via diode)

Max Draw: ~4A

Light Bar Layout: Solid Red | Flashing Amber | White Center | Flashing Amber | Solid Red

Control

  • Turn Signals: Via turn signal splice - synced with all turn signals for on-road use
  • Chase Mode: SwitchPros Button 7 (OUTPUT-7) - both amber sections flash together
  • Isolation: Diodes prevent backfeed between CT4 and SwitchPros circuits
  • Brake (Red): Via brake light splice
  • Running + Work (Red/White): Via running light splice
CT4 Right Turn ──|>|──┬── Yellow (Right Amber)
                      │
SwitchPros OUT7 ─|>|──┘

CT4 Left Turn ───|>|──┬── Blue (Left Amber)
                      │
SwitchPros OUT7 ─|>|──┘
