2.1 Starter System¶
Type: 12V Diesel Starter Motor
Model: Cummins factory starter — shipped mounted on the R2.8 crate engine1
Status: In hand (owner decision 2026-09-22: keep the factory unit)
Manufacturer: Cummins (supplier unit)
Voltage: 12V
Mounting: Engine block (as shipped)
Power Source: START battery+ direct connection (2/0 AWG)

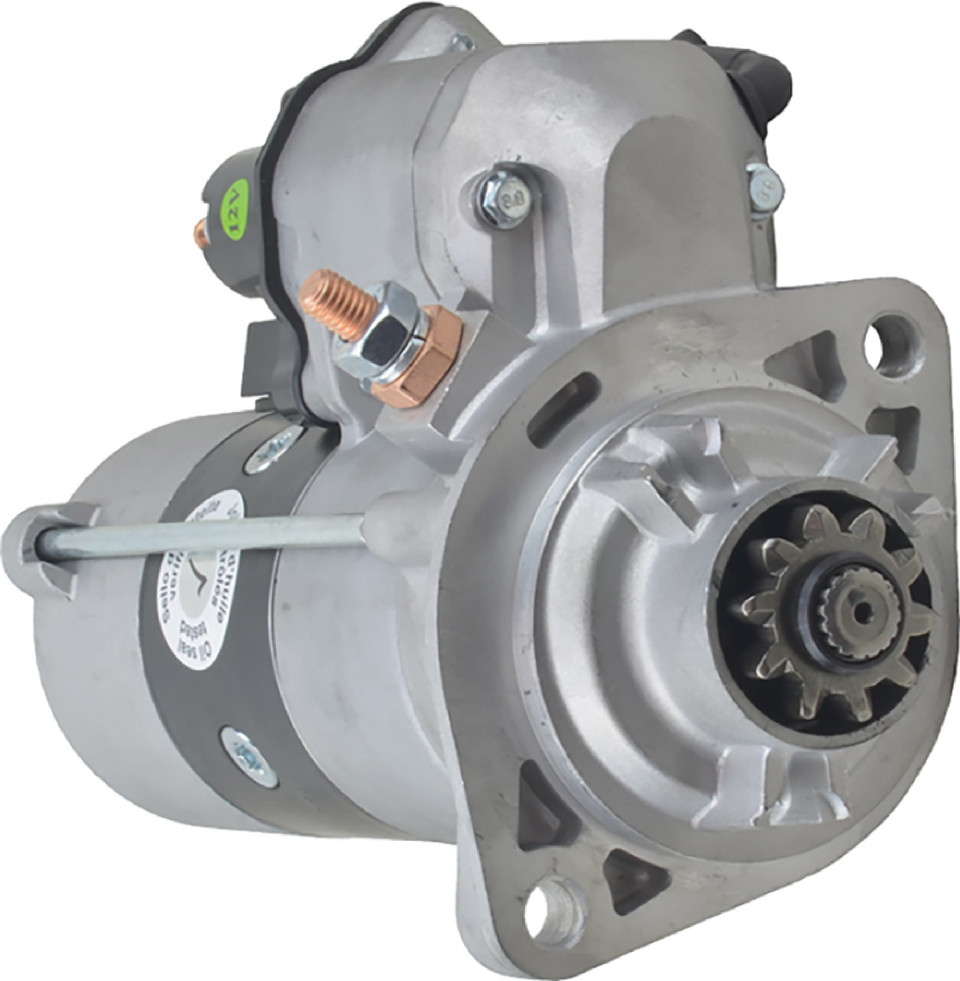

Replacement reference (not purchased): DB Electrical 410-52442 — aftermarket cross-reference to Cummins 4996706 / Denso 428000-7090; useful only if the factory unit ever needs replacing.
System Configuration¶
Control Method: Two-stage relay system
Main Power Source: START battery+ direct connection (see START Battery Distribution for wire specs)
Control Solenoid: Cole Hersee 24213 (200A continuous-duty)2
Safety Interlock: The crank signal (60A PURPLE START) comes solely from the PBS-I keyless module, which owns RFID authorization, the brake interlock, ACC/IGN/START sequencing, and the cold-start WAIT-to-Start lamp procedure — see Keyless Ignition. (An automatic crank lockout was evaluated and deferred — see the WAIT-to-Start Lockout Design Note.)
Battery Requirement: 800 CCA minimum (Odyssey PC1500 provides 850 CCA)
Wiring¶
| Circuit | Source | Destination | Wire Gauge | Current | Notes |
|---|---|---|---|---|---|
| Main Power | START battery+ | Starter solenoid battery post | 2/0 AWG | 400-600A | See START Battery Distribution for wire specs |
| Solenoid Power Tap | START battery post | Cole Hersee 24213 input | 10 AWG | 30-75A | ~2 ft |
| Start Signal | PBS-I PURPLE START output | Firewall Pin 15 → Cole Hersee coil+ | 16 AWG | ~0.69A | PBS-I output rated 60A but only Cole Hersee coil downstream2 |
| Solenoid Coil Ground | Cole Hersee 24213 coil- | Engine bay ground bus | 16 AWG | ~0.69A | ~3 ft |
| Solenoid Output | Cole Hersee 24213 output | Starter solenoid switch post | 10 AWG | 30-75A | ~2 ft |
| Ground Return | Starter case | Engine block ground stud → START battery− | 2/0 AWG | 400-600A | START− 2/0 (~8 ft) lands at the engine block stud; a short 2/0 jumper ties the block to the Engine Bay Ground Bus (re-landed 2026-10-17) |
See Keyless Ignition for PBS-I power and brake input wiring.
Cranking voltage drop: with START− landed at the engine block stud, the cranking loop is 6 ft (supply) + 8 ft (return) ≈ 14 ft of 2/0 AWG ≈ 1.1 mΩ → ~3.6% @ 400A, ~5.5% @ 600A.3 Landed at the ground bus instead, the loop would also include the block→bus link (6 + 8 + 8 ft ≈ 22 ft ≈ 1.7 mΩ plus joints → ~6–7% @ 400A, ~10% @ 600A), which is why the return was re-landed at the block (2026-10-17).
Control Flow¶
PBS-I asserts PURPLE START (fob auth + brake + sequence: see Keyless Ignition)
↓
PURPLE START → Firewall Pin 15 → Cole Hersee 24213 coil → Ground
↓
Cole Hersee main contacts close
↓
START battery → Cole Hersee output → Starter switch post → Bendix engages → cranks
↓
Engine starts → button released → Cole Hersee de-energizes → Bendix retracts
Starter Motor Terminals¶
Battery Post (M8 x 1.25 thread, qty 2):
- Main power from START battery (2/0 AWG)
- Power tap for control solenoid (10 AWG)
Switch Post (6.3mm flat male push-on):
- Trigger from Cole Hersee 24213 output (10 AWG, 30-75A)
Ground:
- Via starter mounting bolts to engine block
Cole Hersee 24213 Solenoid¶
Specifications:
- Rating: 200A continuous duty2
- Coil Voltage: 12V DC
- Coil Draw: ~0.69A (17.5 Ω coil @ 12V)2
- Mounting: Firewall (engine bay side)
Terminals:2
- Large Stud 1 (Input): 5/16"-24 copper power stud; from START battery post (10 AWG)
- Large Stud 2 (Output): 5/16"-24 copper power stud; to starter switch post (10 AWG; starter post is 6.3mm push-on)
- Small Stud 1 (Coil+): #10-32 steel stud; from Firewall Pin 15 (16 AWG, PBS-I PURPLE START)
- Small Stud 2 (Coil-): #10-32 steel stud; to engine bay ground bus (16-18 AWG)
Outstanding Items¶
TBD tracker unavailable
Could not reach the GitHub issues API at build time (network or rate limit). Set GITHUB_TOKEN to raise the limit.
Build Tasks¶
- Record the factory starter's part number from its tag (the terminal posts and current figures below were taken from the aftermarket cross-reference; confirm on the unit)
Related Documentation¶
- START battery Distribution - Main power source
- Firewall Ingress - Ignition START wire routing
- Engine Bay Ground Bus - Ground connections
- Power Generation - Battery specifications
- Wire Distance Reference - Starter to battery routing distances
- Keyless Ignition - PBS-I sources PURPLE START; cold-start wait via the WAIT-to-Start lamp
- WAIT-to-Start Lockout Design Note - Deferred automatic crank-lockout design, preserved for future revival
-
Cummins Repower R2.8 Installation Guide (Bulletin 5504137), §1 "Starter", p. 1-36: "The engine kit includes an engine mounted 12 volt starting motor." Local copy:
resources/cummins-r2.8-installation-guide.pdf. ↩ -
Littelfuse (Cole Hersee) 24213 continuous-duty SPST solenoid, product page / DigiKey #6347082. Rated 200A continuous with two 5/16"-24 copper power studs + two #10-32 steel coil studs; coil ~0.69A @ 12V (17.5 Ω). Corrects the earlier unsourced "85A / M8 / 6.3mm-push-on" figures (validated 2026-05-30). 200A is comfortably oversized for the ~10A starter-trigger path. ↩↩↩↩↩
-
Cable resistance only: 2/0 AWG ≈ 0.0779 mΩ/ft @ 20°C; 14 ft ≈ 1.09 mΩ, 22 ft ≈ 1.71 mΩ; percentages at 12.6 V. Joint and terminal resistance not measured and not included. ↩
