4.7 Cargo Lights

Interior cargo area lighting controlled by physical switch (Baja Designs Zone 7).

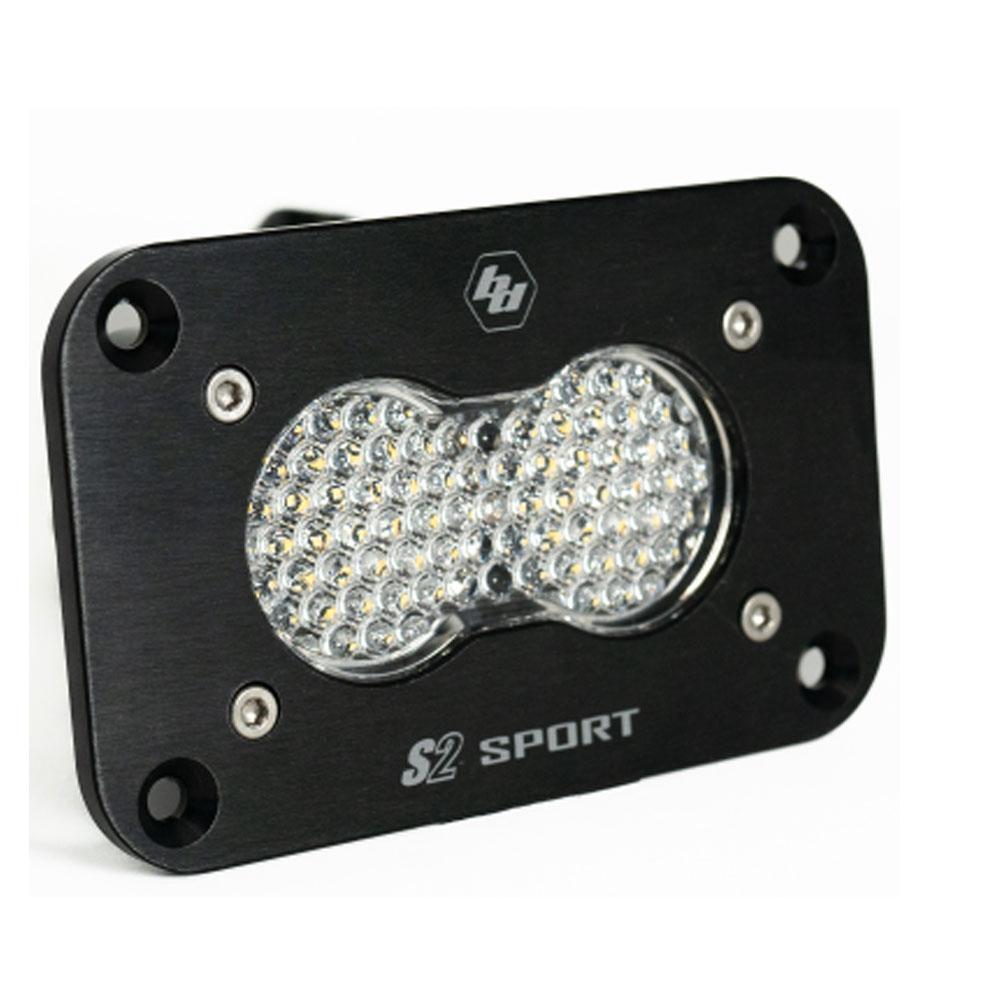

Baja Designs S2 Sport Flush Mount

Type: LED Flush Mount Light

Model: S2 Sport Black Flush Mount

Part Number: 541006

Manufacturer: Baja Designs

Product Page: S2 Sport Black Flush Mount

Quantity: 2 pods

Mounting: Flush mount inset on wheel well

Power Source: BODY PDU (via physical switch)

Specifications

Spec Value
Beam Pattern Work/Scene
Lens Clear
Draw ~2A each (4A total)

Control

Controller: Blue Sea 4160 Push Button Switch

Switch Location: Top of wheel well (accessible from tailgate)

Wiring: BODY PDU CB20 (10A) → Switch → Cargo lights → Ground

Spec Value
Switch Rating 10A @ 12V
Load 4A
Action OFF-ON (latching)
Mounting Hole 3/4" (19mm)
