4.10 Reverse Lights

High-output reverse lights that activate automatically via PMU reverse circuit.

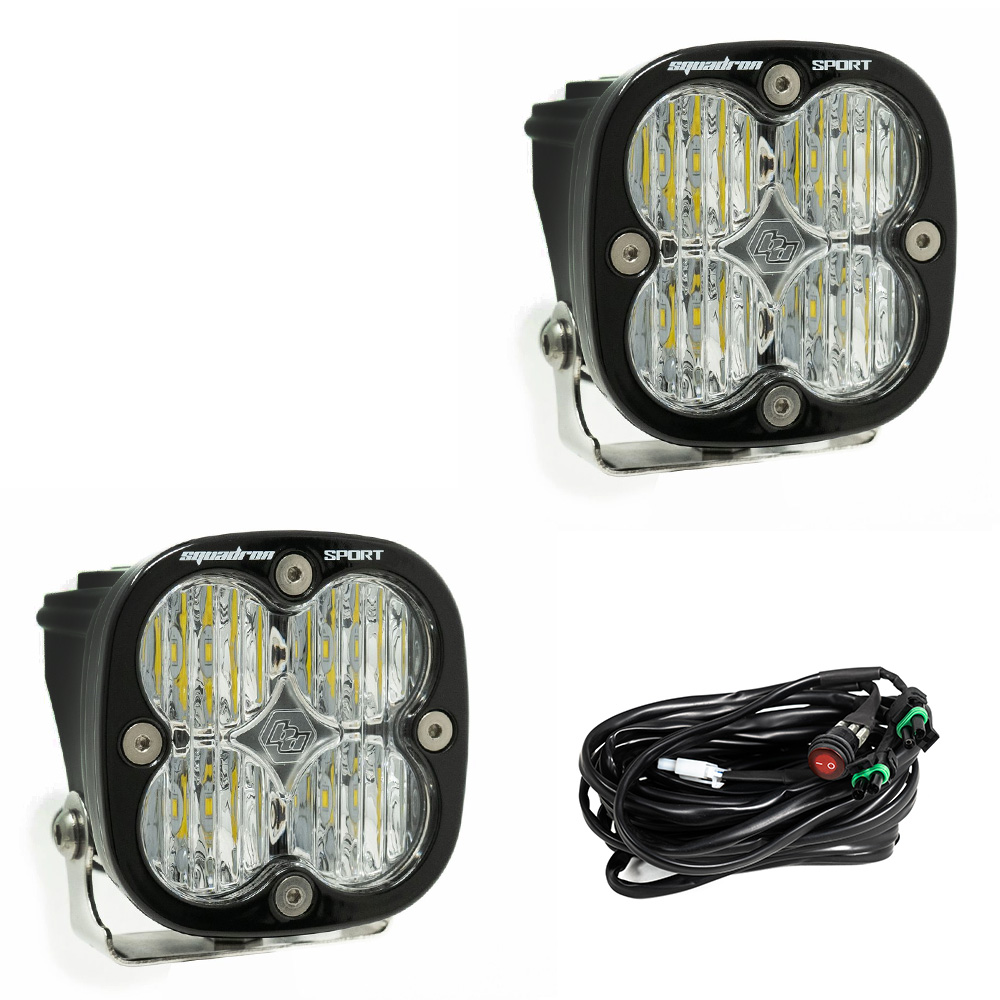

Baja Designs Squadron Sport

Type: LED Pod Light

Model: Squadron Sport Black - Wide Cornering

Part Number: 557805

Manufacturer: Baja Designs

Product Page: Squadron Sport Wide Cornering Pair

Quantity: 2 pods

Mounting: Rear armor brackets

Power Source: PMU Out 22 (automatic with reverse gear)

Specifications

Spec Value
Beam Pattern Wide Cornering 42°
Lens Clear
Output 2,260 lumens each (4,520 total)
Draw 1.4A each (2.8A total)
IP Rating IP69K

Control

Controller: PMU Out 22 (automatic with reverse gear)

Wired in parallel with Maxbilt Round Trail Tail WHITE (reverse) and WolfBox camera trigger.

See Tail/Brake/Reverse Lights for PMU reverse circuit details.

Load Verification:

  • Squadron Sport pair: 2.8A
  • Maxbilt WHITE: ~2A
  • WolfBox trigger: negligible
  • Total: ~5A (PMU Out 22 capacity: 7A, 71% utilization)
