4.6 Rock Lights¶
Underbody lighting for wheel wells and frame rails (Baja Designs Zone 6).
Type: LED Rock Light

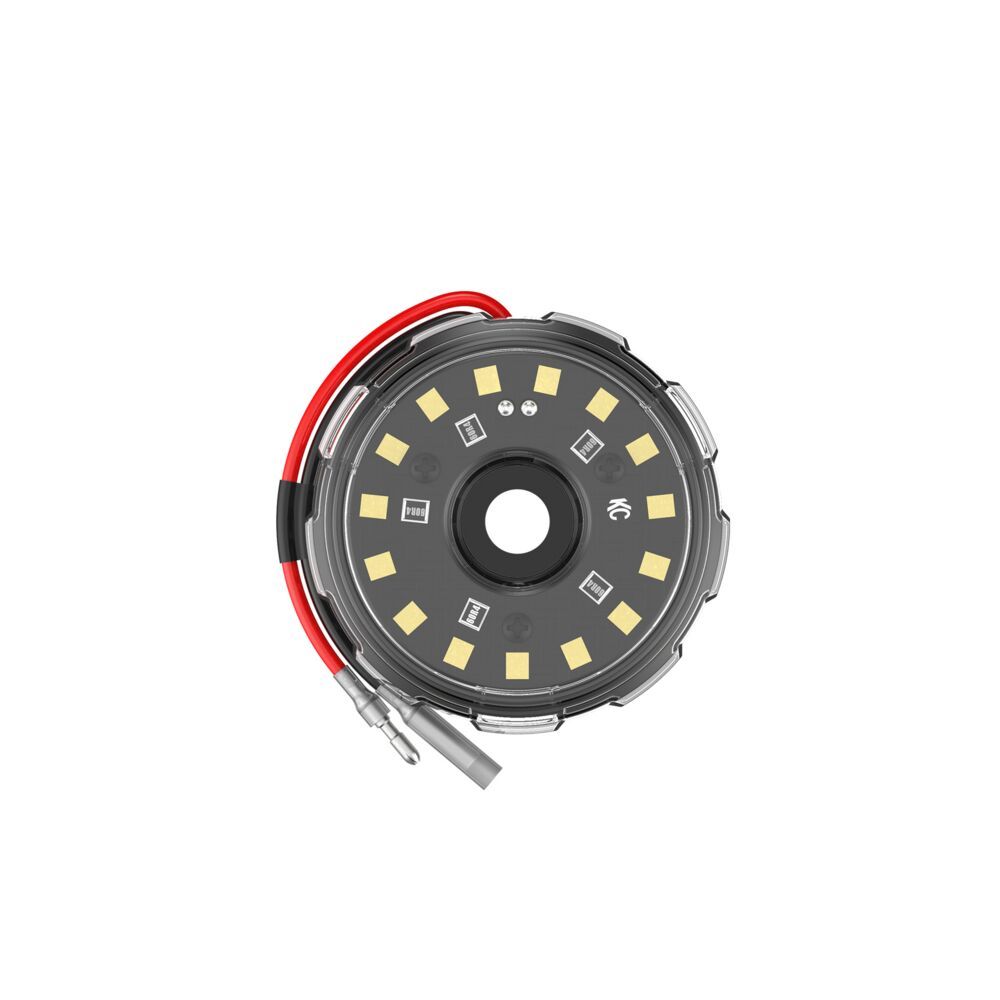

Model: Cyclone V2
Part Number: 1352 (single light)
Manufacturer: KC HiLiTES
Product Page: Cyclone V2
Quantity: 6 pods
Mounting: 4 in wheel wells (one per corner), 1 front bumper, 1 rear bumper
Power Source: SwitchPros OUTPUT-6
Specifications¶
| Spec | Value |
|---|---|
| Output | 200 lumens each (1,200 total) |
| Draw | 0.5A each (3A total) |
| Size | 2.4" diameter round |
Control¶
Controller: SwitchPros Button 6 (OUTPUT-6)
See SwitchPros SP-1200 for wiring details.
Protection: Braided sleeving with soldered connections and marine heat shrink.
Outstanding Items¶
- Plan wire routing from SwitchPros to wheel wells and bumpers
