6.4 Subwoofers¶
Pair of 8" infinite baffle marine subwoofers with RGB LED lighting, mounted symmetrically in the rear quarter panels.
Type: 8" Infinite Baffle Marine Subwoofer
Model: M6-8IB-S-GmTi-i-4
Manufacturer: JL Audio
Product Page: M6-8IB-S-GmTi-i-4
Quantity: 2 (pair)
Mounting: Rear quarter panels (one per side, above wheel wells, firing inward)
Power Source: Amplifier Channels 1+2 bridged @ 4Ω → Sub A; Ch 3+4 bridged @ 4Ω → Sub B (one dedicated bridged pair per sub)
Specifications (per sub)¶
| Spec | Value |
|---|---|
| Power Handling | 200W RMS @ 4Ω |
| Impedance | 4Ω SVC |
| Sensitivity | ~85 dB @ 1W/1m |
| Voice Coil | 2" |
| Overall Diameter | ~9.5" |
| Mounting Depth | ~4.25" |
| Weight | ~7 lbs |
| Warranty | 3 years |
Wiring Configuration¶
Each sub runs on its own dedicated bridged channel pair on the JL Audio MV800/8i — Sub A on Ch 1+2 bridged, Sub B on Ch 3+4 bridged, both at 4Ω. This is an exact RMS match to the sub's 200W @ 4Ω rating, with no series compromise and independent per-sub gain/EQ/delay via the amp's onboard DSP.
| Wiring | Per-Sub Load | MV800/8i Output | Per Sub | Safe? |
|---|---|---|---|---|
| Bridged @ 4Ω per sub | 4Ω | 200W | 200W | ✅ 100% of RMS rating |
| Parallel both on one pair | 2Ω | n/a (bridged minimum is 4Ω) | n/a | ❌ Below bridged minimum |
Wiring path (per sub, both pairs identical):
Total amp output 400W into the pair (200W per sub) — exact RMS match, no headroom waste from series resistance, independent gain trim per side if the L/R quarter-panel locations end up acoustically asymmetric.
Infinite Baffle Requirements¶
- Minimum air volume: 0.75 cu ft per sub (1.5 cu ft pair)
- Installation type: No dedicated enclosure required
- Ideal location: Rear quarter panels above wheel wells, firing inward into cabin
- IB chamber: Rear cargo area / behind quarter trim (effectively unlimited volume in an LJ)
Features¶
- Transflective RGB LED lighting (via MLC-RW)
- Gunmetal trim ring with titanium sport grille
- Marine-grade construction
- Mica-filled polypropylene cone
- Synthetic rubber surround
Wiring¶
| Connection | Wire | Notes |
|---|---|---|
| Sub A (+) / (−) | 14 AWG | From amp Ch 1+2 bridged to Sub A voice coil |
| Sub B (+) / (−) | 14 AWG | From amp Ch 3+4 bridged to Sub B voice coil |
| LED | 20 AWG | RGB from MLC-RW (one tap per sub) |
Standard speaker wire (no XM-WHTMFC needed for subwoofer audio). No series jumper between subs — each sub returns directly to its own bridged channel pair.
Why Two 8" vs Single 12"¶

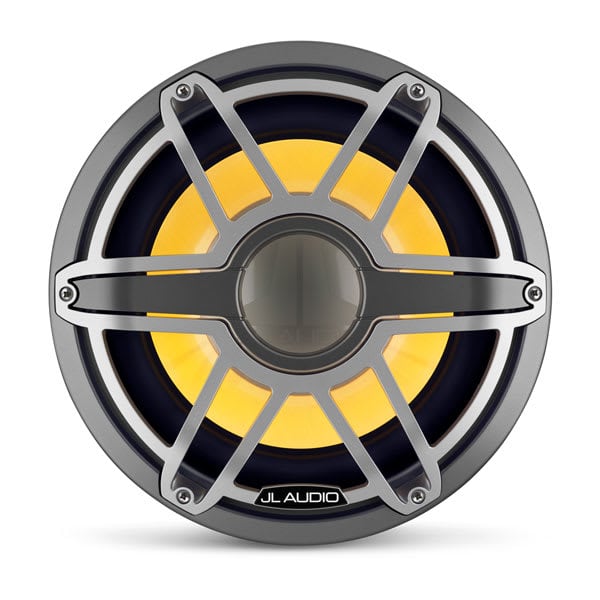

The single 12" M7-12IB option (600W RMS, 14" overall diameter, 7.94" mounting depth, requires 3+ cu ft IB chamber) was ruled out for LJ-specific install reasons:
- Mounting depth: 7.94" of basket depth makes most LJ panels impractical — cage tubes, wheel wells, and tailgate clearance all conflict.
- Single-sub asymmetry: harder to integrate cosmetically vs symmetric L/R 8" pair.
- No matching 12" M6: JL doesn't make a 12" M6-IB (M6 IB line tops at 10"), so the pair option doesn't exist at 12".
Tradeoff accepted: total sub output is 400W (2× M6-8IB on dedicated bridged pairs of the MV800/8i @ 4Ω each) vs ~580W for a single M7-12IB. About 70% of the single-12" output, but symmetric L/R placement, independent per-sub DSP, and a feasible mounting depth in the LJ quarter panels win out. Acceptable for a soft-top Jeep where wind noise dominates at highway speed anyway.
Outstanding Items¶
TBD tracker unavailable
Could not reach the GitHub issues API at build time (network or rate limit). Set GITHUB_TOKEN to raise the limit.
Build Tasks¶
- Confirm exact mounting locations in rear quarter panels (clear of cage tubes and rear seatbelts)
- Verify quarter panel material can support sub weight + mounting torque (may need backing plate)
- Source M6-8IB-S product image (
docs/jeep_lj/images/jl-audio-m6-8ib-s-gmti-i-4.jpg)
