7.1 GMRS Radio¶

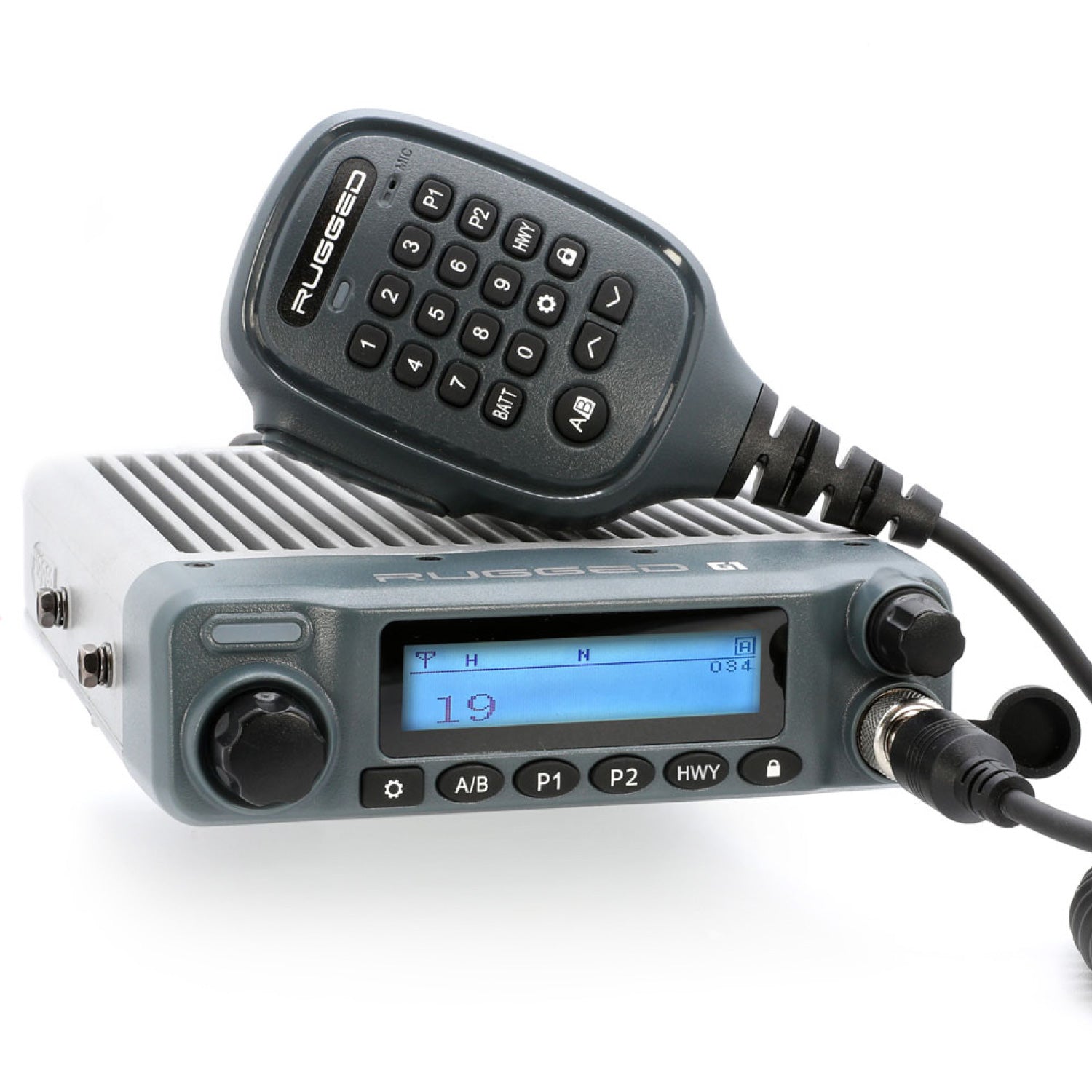

40 W GMRS two-way radio for vehicle-to-vehicle communication and group coordination. It connects to the intercom through its own rear-panel intercom port, so everyone on a headset hears the radio and can transmit.1

Type: GMRS Mobile Radio
Model: G1-GMRS
Manufacturer: Rugged Radios
Product Page: Rugged Radio G1
Manual: User Manual
Mounting: Overhead, centered on the roll cage (owner, 2026-09-25), on the U-bracket that comes with the radio
Power Source: PMU OUT6 (15 A output), on while the PMU is on (ignition, plus the Delayed turn off window)
Specifications¶
All from the G1 manual (printed page numbers).1
| Spec | Value |
|---|---|
| Output Power | 40 W high, 25 W middle, 5 W low (p. 30) |
| Frequency | TX 462-467 MHz, RX 400-480 MHz (p. 28) |
| Channels | 15 GMRS (1-7, 15-22) + 8 repeater (p. 7) |
| Current Draw | 0.16 A standby, 0.4 A receive, 9 A max transmit (pp. 29-30) |
| Working Voltage | 13.8 V DC; 15 A fuse in the power cable (pp. 10, 28) |
| Size | 53 x 138 x 153 mm (H x W x D), 2.55 lb (p. 28) |
| Rear Panel | Intercom port, speaker/programming port (Accessory Hub), power, antenna (p. 16) |
| Waterproof | IP67 (p. 7) |
| FCC License | Required (family license, no exam) |
Features¶
- CTCSS/DCS privacy codes
- VOX (voice-activated transmission)
- Channel scan function
Antenna¶
| Spec | Value |
|---|---|
| Model | Rugged Radios Stealth UHF-GP (ground plane) |
| Type | Low-profile tuned antenna (3.25" tall) |
| Frequency | 450-480 MHz |
| Gain | 2.0 dBi |
| Mount | A-pillar ditch light adapter (MT-ANT-ADPT) |
| Connector | NMO |
| Cable | RG58 or LMR-400 (50Ω impedance) |
Wiring¶
| Connection | Wire | Source | Notes |
|---|---|---|---|
| Power (+) | 14 AWG | PMU OUT6 | Via firewall grommet, then up to the cage; length not measured |
| Ground (−) | 14 AWG | START battery neg | Direct connection for RF performance; length not measured |
| Antenna | RG58 coax | Driver A-pillar antenna | Route away from power leads |
| Intercom | Intercom cable + 5-pin extension | G1 rear intercom port to the STX-RS RADIO port | Rugged: a 5-pin extension is needed when the radio is more than 1 ft from the intercom body2 |
Installation Notes¶
- Keep coax length <25 ft for minimal signal loss
- The hand mic does not work through the intercom. Rugged recommends keeping it in the Jeep for emergencies and powering off the intercom to use it (see Intercom).
Build Tasks¶
- Choose a roll-cage clamp for the G1's U-bracket, centered on the overhead cage tube
- Measure the power, ground and coax runs to the overhead mount
- Measure the run from the G1 to the intercom box and buy a 5-pin intercom extension that long
Outstanding Items¶
TBD tracker unavailable
Could not reach the GitHub issues API at build time (network or rate limit). Set GITHUB_TOKEN to raise the limit.
Related Documentation¶
-
Rugged Radios, G1 User Manual (31 pp.). Printed p. 7 (features: "Easily connect to an intercom with it's own dedicated port"; 15 GMRS + 8 repeater channels; IP67), p. 10 (15 A transceiver fuse), p. 16 (rear panel: Intercom, Speaker/Programming, Power, Antenna ports), pp. 28-30 (specifications). https://cdn.shopify.com/s/files/1/0240/3280/4960/files/G1_Manual.pdf (accessed 2026-09-25). ↩↩
-
Rugged Radios, "STX STEREO Remote Head Complete Master Communication Kit with Intercom and 2-Way Radio": offered with the G1 GMRS radio; "If the radio is not mounted within one foot of the main intercom body, a 5-pin extension is required to link the radio and intercom together." https://www.ruggedradios.com/products/stx-stereo-remote-head-complete-master-communication-kit-with-intercom-and-2-way-radio (accessed 2026-09-25). ↩
