4.1 Ditch Lights¶
A-pillar mounted lights for peripheral and side illumination (Baja Designs Zone 2).

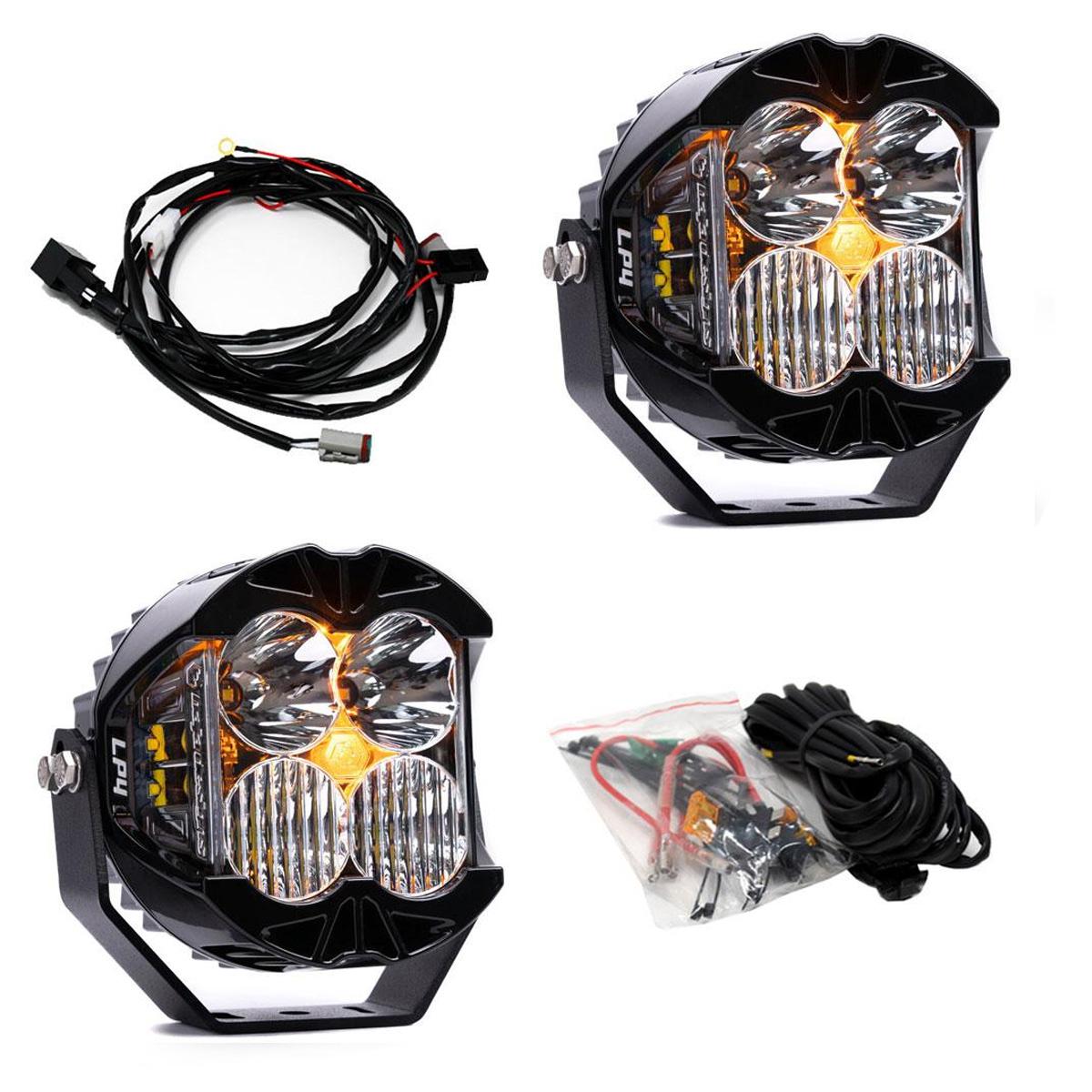

Type: LED Pod Light
Model: LP4 Pro Driving/Combo
Part Number: 297803
Manufacturer: Baja Designs
Product Page: LP4 Pro Driving/Combo
Quantity: 2 (left and right A-pillars)
Mounting: Motobilt A-pillar light mounts
Power Source: SwitchPros OUTPUT-2
Specifications¶
| Spec | Value |
|---|---|
| Beam Pattern | Driving/Combo |
| Lens | Clear |
| Output | 4,400 lumens each (8,800 total) |
| Draw | 4A each (8A total) |
Control¶
Controller: SwitchPros Button 2 (OUTPUT-2)
See SwitchPros SP-1200 for wiring details.
Zone 2 Purpose¶
Driving/Combo pattern provides peripheral illumination for:
- Trail obstacle visibility on sides
- Ditch and shoulder illumination
- Tight maneuvering situations
Outstanding Items¶
- Plan wire routing from SwitchPros to A-pillars
