4.3 Roof Lights¶

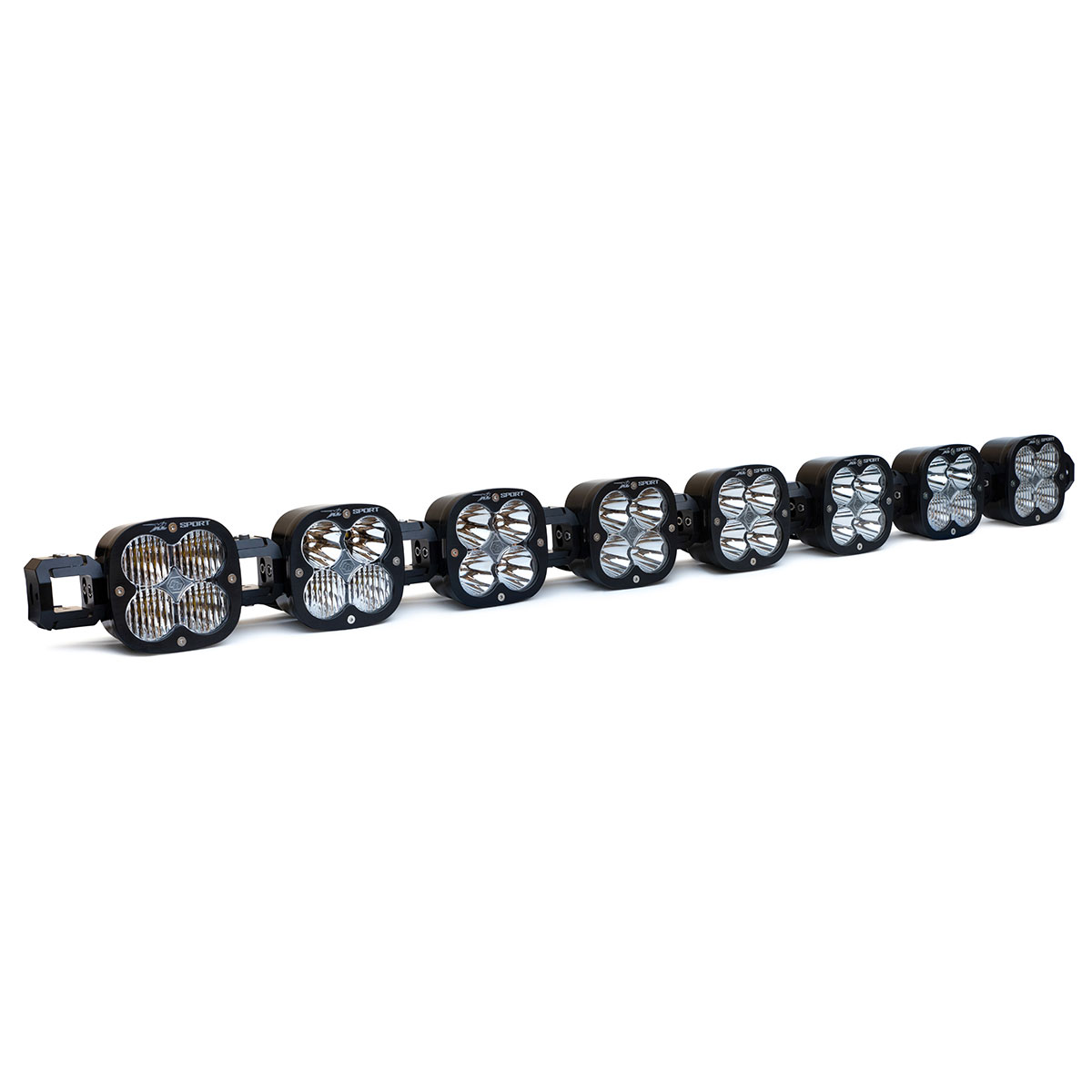

Primary forward illumination mounted on roof rack (Baja Designs Zone 3 + Zone 4).
Type: LED Pod Light (Linkable)
Model: XL Sport Linkable
Part Number: 740006
Manufacturer: Baja Designs
Product Page: XL Sport Linkable 8-Pod
Quantity: 8 pods total
Harness: XL Linkable Wiring Harness 8-Pod (640192)
Mounting: XL Linkable Pre-Load Mount (748002) center + XL Linkable Brackets (748000) sides
Power Source: SwitchPros OUTPUT-1
Wiring¶
All 8 pods on single circuit via XL Linkable harness.
Wire Routing: Passenger A-pillar from SwitchPros (engine bay) to roof rack.
Controller: SwitchPros Button 1 (OUTPUT-1) - 17.6A load on 35A output (50% utilization)
Specifications¶
| Spec | Value |
|---|---|
| Output | 9,000 lumens each |
| Draw | 2.2A each (30.36W) |
| Total Output | 72,000 lumens |
| Total Draw | 17.6A |
See SwitchPros SP-1200 for wiring details.
