2.5 Horn System¶
Type: Horn

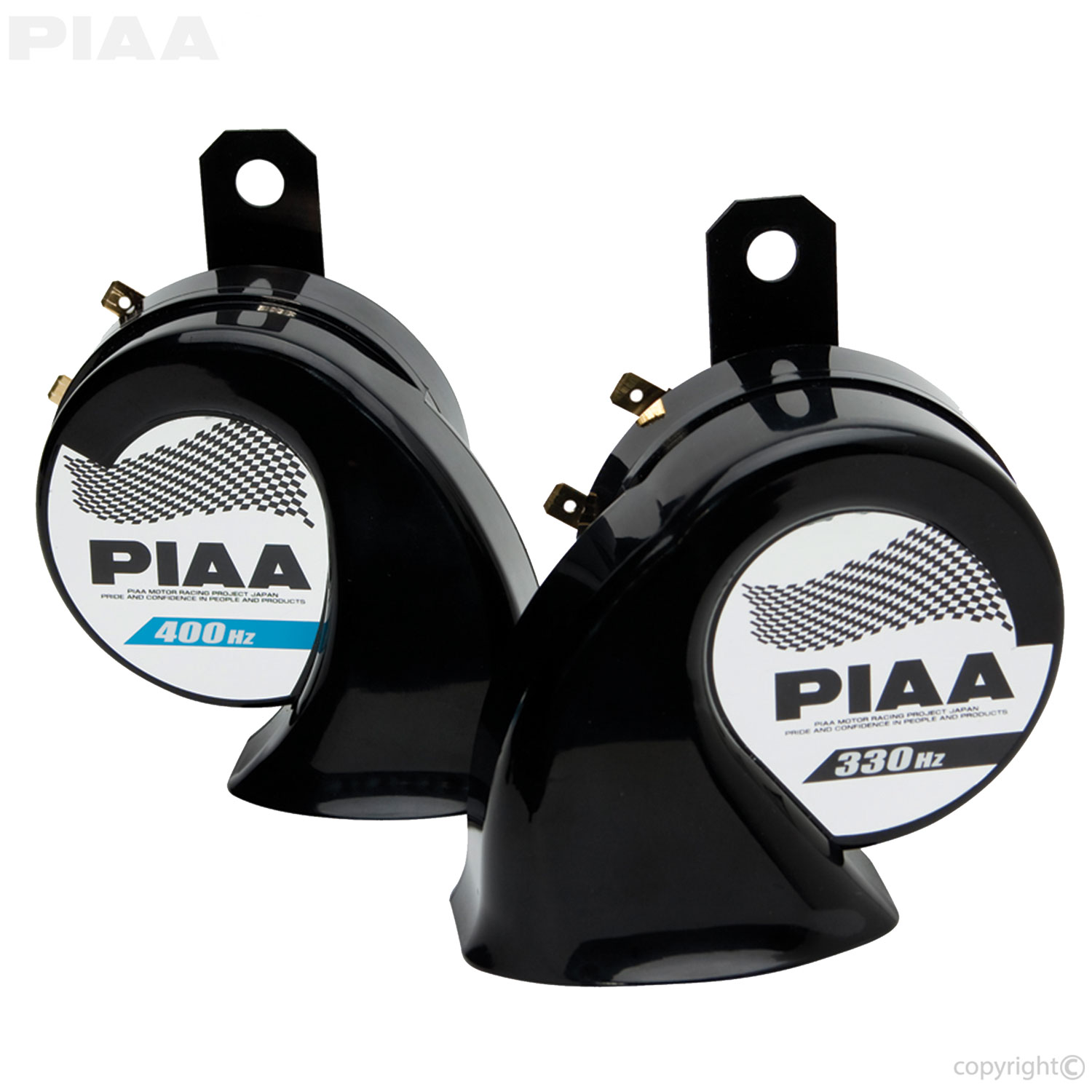

Part: Supplied with the SwitchPros CT4 Turn Signal & Accessory Kit (purchased; replaces the planned PIAA 85115)
Mounting: Engine bay, on the kit's bracket
Power Source: PMU Out 18 (7A capacity, on while the PMU is on)
Specifications¶
- Current draw: ⚠️ TBD #326 — PMU Out 18 keeps the previous 5.4A budget until measured
- Polarity: Not polarity-sensitive1
- Ground: Chassis ground (engine bay)
The kit wires this horn to CT4 SW3. This build uses SW3 for the low beams, so the horn runs from PMU Out 18 instead and keeps the steering-wheel button below.
Control¶
Button: Momentary push button (normally open) on steering wheel PTT bracket
PMU Configuration:
- Input: In 1 (horn button signal)
- Output: Out 18 (7A capacity, powers horns directly)
- Logic: When In 1 closes, Out 18 activates (no external relay needed)
- Power: on while the PMU is on — the PMU shuts off at key-off (Delayed turn off window aside), so the horn is not available with the ignition off; see PMU Outputs
Wiring Configuration¶
START battery CONSTANT → PMU → Out 18 → CT4 kit horn → Chassis Ground
↑
Horn Button → In 1 (trigger) [column path undefined — <a href="https://github.com/sob/shopmanual.io/issues/152" target="_blank" rel="noopener" title="Issue not found in tbd-labeled list">⚠️ TBD #152</a>]
Outstanding Items¶
TBD tracker unavailable
Could not reach the GitHub issues API at build time (network or rate limit). Set GITHUB_TOKEN to raise the limit.
Related Documentation¶
- PMU Outputs - PMU Out 18 circuit and programming
- START Battery Distribution - MRBF terminal fuses at the post (150A PMU, 80A BCDC)
- Firewall Ingress - Horn button trigger wire routing
-
SwitchPros Command-Touch CT4 manual, Rev. 1.0091524 — p.5 (step 8: secure the horn with the supplied bracket and connect it; "polarity does not matter") and p.6 (wiring diagram: Orange SW3 = horn). https://www.switchpros.com/wp-content/uploads/CT4-Rev-1.0.pdf ↩
