Headlights

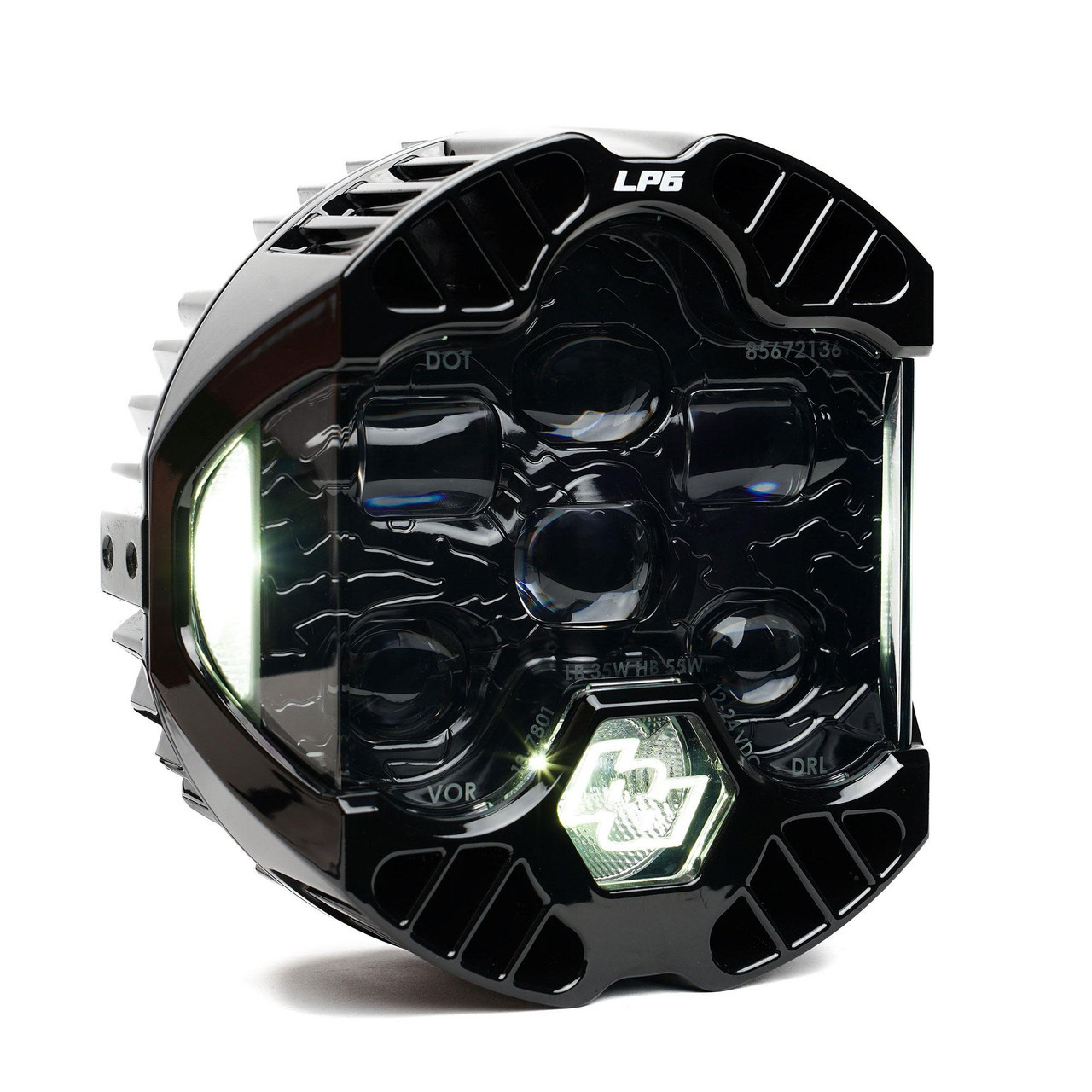

Baja Designs LP6

Type: DOT LED Headlight (complete replacement)

Model: LP6 DOT

Manufacturer: Baja Designs

Product Page: LP6 Pair Driving/Combo LED

Installation Guide: Baja Designs LP6 DOT Wiring

Quantity: 2 (left and right)

Mounting: Factory headlight buckets

Power Source: Command Touch CT4 SW3/SW4

Pin Configuration (Deutsch DT06-4S connector, IP68)

Pin Function Connection Wire Gauge Current Ampacity @60°C Utilization
1 Low Beam CT4 SW3 14 AWG 3.6A 20A 18%
2 Ground Chassis 14 AWG - - -
3 DRL PMU Out 23 16 AWG 0.8A 13A 6%
4 High Beam CT4 SW4 14 AWG 5.6A 20A 28%

Low Beam

  • Control: Pull CT4 lever (latching on/off)
  • Power: START+ Forward Bus (15A fuse, HDP24 pin 2) → CT4 → SW3 output (10A internal fusing)

High Beam

  • Control: Push CT4 lever (momentary or latching - programmable)
  • Power: START+ Forward Bus (15A fuse, HDP24 pin 2) → CT4 → SW4 output (10A internal fusing)
  • Mutual Exclusivity: CT4 automatically disables low beam when high beam activates

Both beams stay active with the ignition off (CT4 programmed without ignition lockout, because the parking/tail markers follow the headlights); current draw is per the pin table above.

DRL (Daytime Running Light)

  • Power: PMU Out 23 (dedicated — the Maxbilt tail markers moved to Out 12 on 2026-09-22)
  • Auto-Off Logic: PMU disables DRL when CT4 SW3 activates headlights
  • Control: Automatic with ignition (on when ignition on, off when headlights or ignition off)
  • Load: 0.8A total
  • See DRL/Parking Lights for complete circuit details

Outstanding Items

TBD tracker unavailable

Could not reach the GitHub issues API at build time (network or rate limit). Set GITHUB_TOKEN to raise the limit.

Build Tasks

  • Plan wire routing from CT4 to headlight buckets (engine bay, 14 AWG)
  • Verify headlight aim after installation (LP6 DOT is compliant, just needs aiming)
