4.8 Rear Work Lights¶

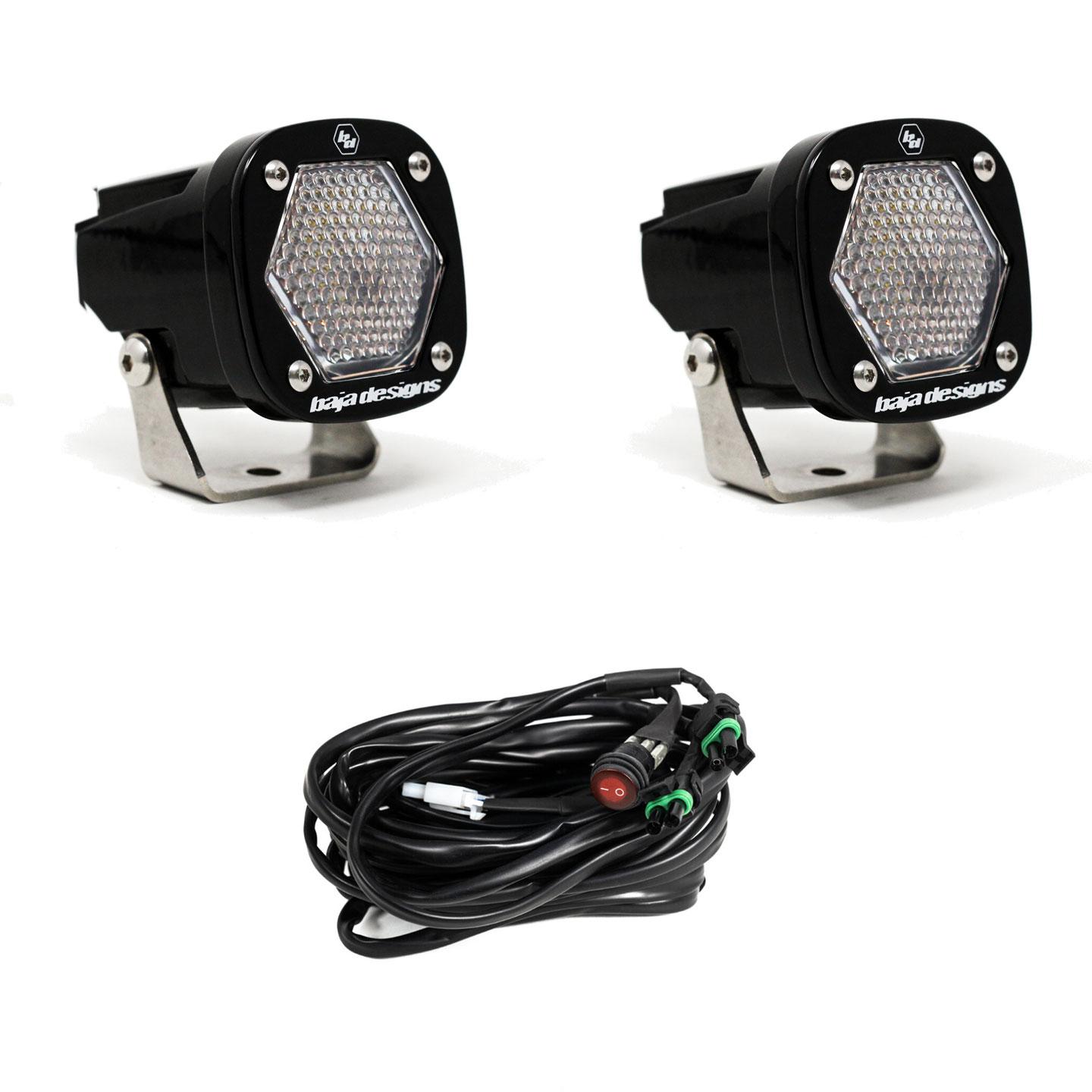

Rear-facing auxiliary work lights mounted at license plate area (Baja Designs Zone 8).
Type: LED Pod Light
Model: S1 Black LED
Part Number: 387806
Manufacturer: Baja Designs
Product Page: S1 Black LED Work/Scene
Quantity: 2 pods
Mounting: Above license plate (clears WolfBox rear camera)
Power Source: SwitchPros OUTPUT-12
Specifications¶
| Spec | Value |
|---|---|
| Beam Pattern | Work/Scene |
| Lens | Clear |
| Output | 1,900 lumens each (3,800 total) |
| Draw | 2.5A each (5A total) |
| Size | 2" square |
Control¶
Controller: SwitchPros Button 12 (OUTPUT-12)
See SwitchPros SP-1200 for wiring details.
Related Documentation¶
- Offroad Lighting Overview
- SwitchPros SP-1200
- Reverse Lights - Separate PMU-controlled reverse lights
