4.9 Footwell Lights¶
RGB interior lighting synced with stereo speaker LEDs via JL Audio MLC-RW controller.

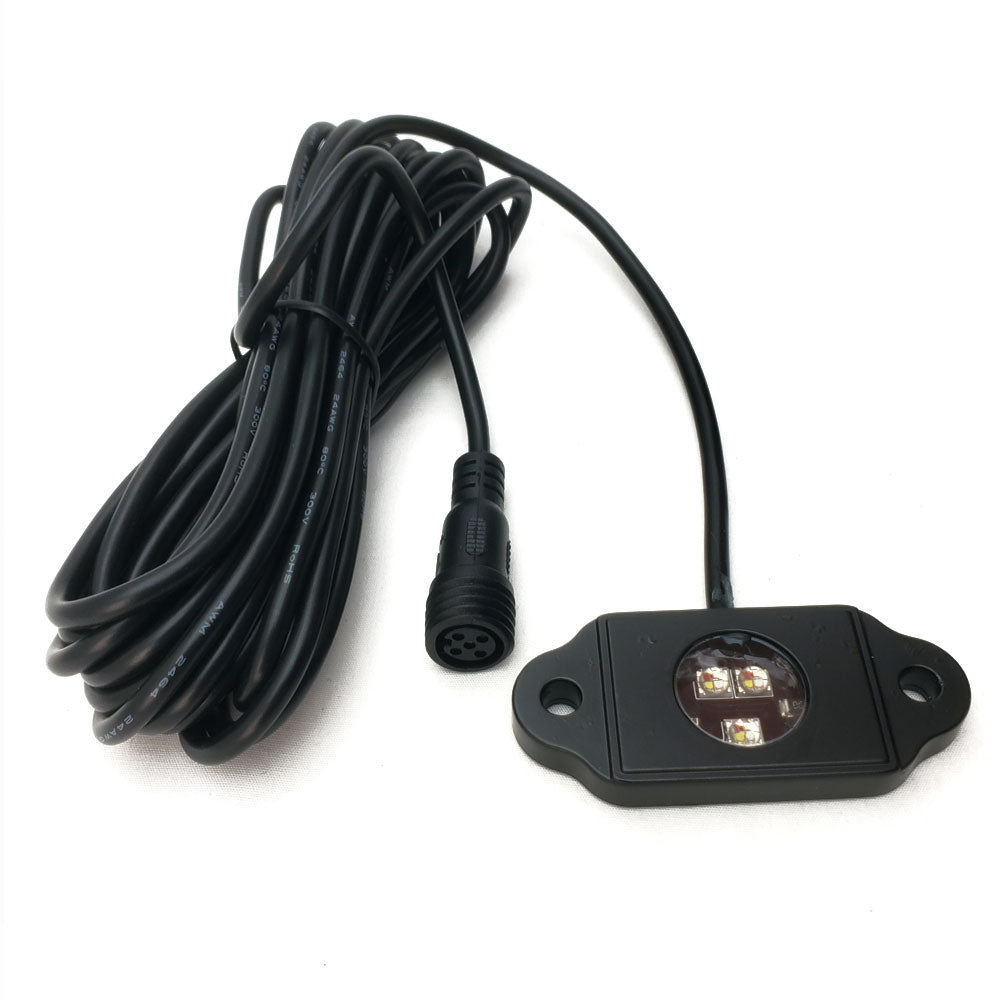

Type: RGBW LED Rock Light Pod
Model: RGBW LED Rock Light Single Pod
Part Number: N/A (sold individually)
Manufacturer: LED4Life
Product Page: LED4Life RGBW Rock Light Single Pod
Quantity: 4 pods
Mounting: Footwells (2 front, 2 rear)
Power Source: JL Audio MLC-RW controller
Specifications¶
| Spec | Value |
|---|---|
| Wiring | Common anode (5-pin RGBW) |
| Waterproof | IP68 |
| Construction | Epoxy filled, aluminum body |
| Wire Length | 14.5' per pod |
| Price | ~$15 each |
Wiring¶
Pods wire to MLC-RW outputs using multi-conductor cable, in parallel with JL Audio speaker LEDs:
| LED4Life Wire | MLC-RW Wire | Function |
|---|---|---|
| +12V | White | Common anode (+12V) |
| R | Red | Red LED (−) |
| G | Green | Green LED (−) |
| B | Blue | Blue LED (−) |
| W | Not connected | White LED (unused) |
W channel capped off - MLC-RW is RGB only. RGB can produce white when all channels on.
Control¶
Controller: JL Audio MLC-RW (rotary encoder + WiFi app)
- Press & hold 2 sec: Power ON
- Press & hold 5 sec: Power OFF
- Rotate: Color/brightness/speed
See Audio Systems for MLC-RW details.
Outstanding Items¶
- Confirm LED4Life pod wire colors match table above
