7.4 Dash Camera¶

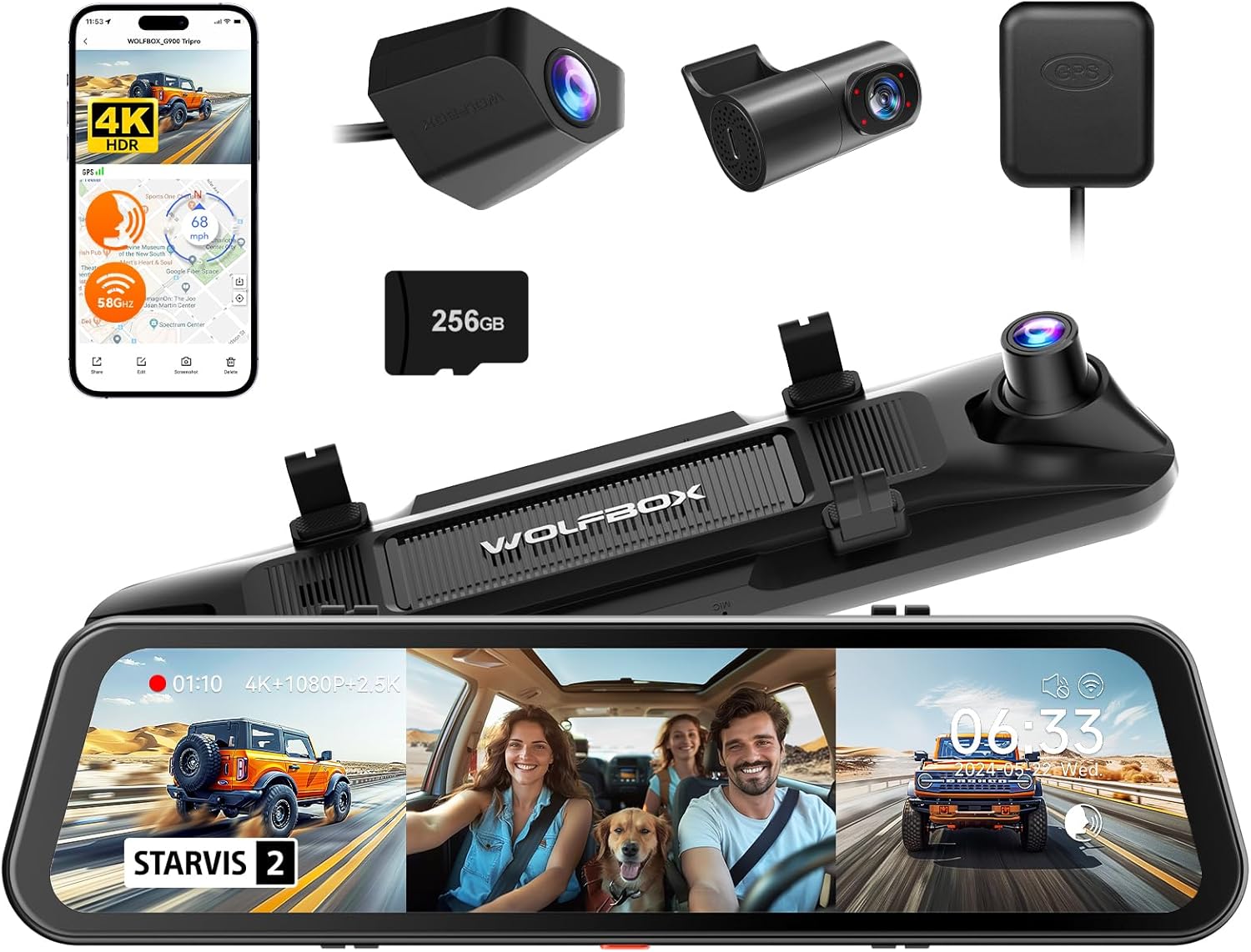

Rearview mirror replacement with integrated front dash camera and rear backup camera display.
Type: Mirror Dash Camera System
Model: G900 TriPro
Manufacturer: WolfBox
Product Page: WolfBox G900 TriPro
Mounting: Windshield (replaces factory rearview mirror)
Power Source: BODY PDU CB39 (10A, CONSTANT)
Specifications¶
| Spec | Value |
|---|---|
| Front Camera | Integrated in mirror unit |
| Rear Camera | Above license plate |
| Display | 12" touchscreen |
| Current Draw | 2-5A typical |
| Storage | SD card (loop recording) |
Features¶
- Front-facing dash cam (always recording when powered)
- Rear camera display on reverse
- Loop recording to SD card
- G-sensor collision detection
- Night vision (front and rear)
- Lane departure warnings (model dependent)
- Parking mode (with CONSTANT power)
Components¶
Main Unit (Mirror):
- Replaces factory rearview mirror
- Integrated front camera
- Touchscreen for settings/playback
- CONSTANT power enables parking mode recording
Rear Camera:
- Mounts above license plate
- Powered via cable from main unit
- Auto-displays when reverse gear engaged
Wiring¶
| Connection | Wire | Source | Notes |
|---|---|---|---|
| Power (+) | 18 AWG | BODY PDU CB39 | 10A, CONSTANT |
| ACC Trigger | 18 AWG | Ignition SWITCHED bus | Parking mode vs driving |
| Ground (−) | 18 AWG | Dash ground | Firewall stud or local |
| Reverse Trigger | 18 AWG | Reverse light circuit | Auto-display rear camera |
| Rear Camera | Included cable | Main unit | Power + video combined |
Cable Routing¶
Main Unit to Rear Camera:
Windshield → along inside tub corner (bundled with other rear wiring) → up to license plate area
Reverse Trigger:
Tap into reverse light circuit → route to WolfBox trigger input
Outstanding Items¶
None - all specifications determined.
